Harman Kardon Festival D1000 Oldschematic

The Harman Kardon Festival D1000 holds a legendary status in the audio world. It’s widely considered the first commercially available hi-fi receiver, a product that revolutionized home audio by combining multiple components into a single unit.

Here’s a breakdown of its significance and potential features:

Significance:

• Introduced in 1954, the Festival D1000 marked a turning point in audio history. Before its arrival, building a high-fidelity (hi-fi) system required assembling separate components like tuners, amplifiers, and pre-amplifiers. This could be complex and expensive for many consumers.
• The D1000 integrated these functionalities into a single chassis, simplifying setup and making hi-fi audio more accessible to a wider audience.

Potential Features (Based on Limited Information):

• AM/FM Tuner: The receiver section likely allowed users to tune into radio stations, a primary source of music at the time.
• Integrated Amplifier: The amplifier section would have taken the weak signal from the tuner and boosted it to power speakers.
• Preamplifier Section (Possible): Some sources suggest the D1000 might have included a preamp stage for connecting external audio sources like record players. However, information on this specific aspect can be scarce.
• Power Output (Around 20 Watts): While exact specifications are difficult to confirm, the 20-watt figure suggests a moderate power output, likely suitable for small to medium-sized rooms.

Availability and Considerations:

• Rarity: Due to its age and historical significance, the Harman Kardon Festival D1000 is a rare collector’s item. Finding one in good working condition can be challenging.
• Restoration Needs: Given its vintage nature, any surviving D1000 units might require restoration or refurbishment by a qualified technician to ensure safe and optimal performance.
• Modern Alternatives: Modern hi-fi receivers offer a wider range of features, higher power outputs, and compatibility with various audio sources.

Overall, the Harman Kardon Festival D1000 represents a significant milestone in audio history. While its features might seem modest by today’s standards, its legacy as the first commercially available hi-fi receiver solidified its place in the hearts of audio enthusiasts.

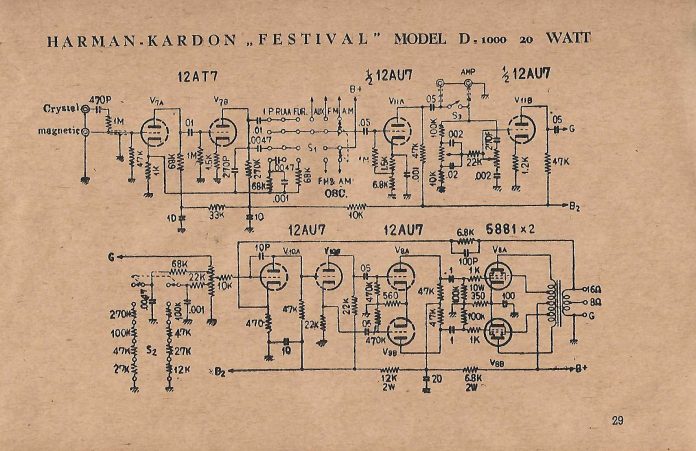

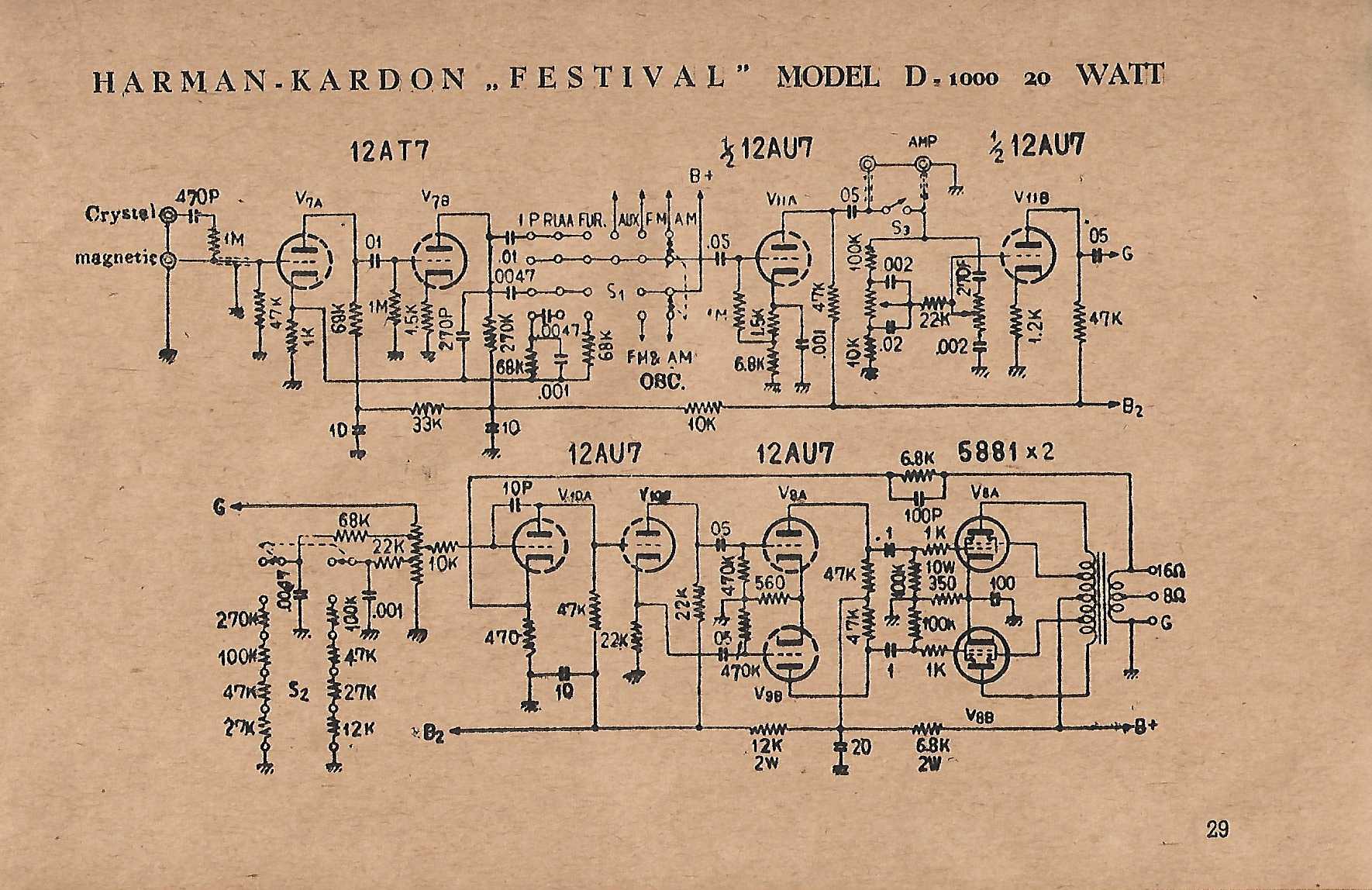

explanation of the potential functions of the components:

Input Section:

• Crystal Phono Input: This input (marked “Crystel” on the schematic) is likely designed for a crystal phono cartridge. This type of cartridge was an early design for record players, and it provided a weak output voltage.
• Input Selector Switch (S1): This switch allows the user to select between the crystal phono input (Crystel) and other possible inputs (AUX, FMAM) that are not shown on this schematic section.
• Input Resistor (R118): In conjunction with the input capacitors (C470P and C.001), this resistor might form a voltage divider circuit to affect the signal level at the input stage.
• Input Capacitors (C470P and C.001): These capacitors likely block DC voltage from the input source while allowing the AC audio signal to pass through to the next stage.

Preamplifier Stage (V1: 12AT7):

• Triode Vacuum Tube (12AT7): This tube amplifies the weak signal from the selected input source (phono or AUX/FMAM).
• Cathode Bypass Capacitor (C47): Improves AC signal fidelity and stability in the first triode section.
• Grid Resistor (R470): Sets the input impedance of the triode section and affects gain.
• Plate Resistor (R68k): Along with the grid resistor, this resistor sets the gain of the triode amplifier stage.
• Plate Capacitor (C.001): Blocks DC voltage from the plate of the triode while allowing the AC audio signal to pass through.

EQ Stage (Possible, Not Shown in Detail):

• The schematic doesn’t clearly depict an EQ (equalization) stage. However, some sources suggest the D1000 might have included a basic tone control circuit for adjusting bass and treble. If present, this section would likely consist of additional resistors and capacitors to modify the frequency response of the audio signal.

Main Amplifier Stage (V118, 12AU7 & 68K):

• Triode Vacuum Tube (V118, 12AU7): This triode likely provides additional voltage gain to the amplified signal from the preamp stage.
• Components around V118: The surrounding components (resistors and capacitors) likely function similarly to those in the first triode stage (V1), setting gain, improving signal stability, and blocking DC voltages.
• Phase Inverter Stage (68K): The 68K resistor, in conjunction with other components not fully shown in this schematic section, might form a phase inverter circuit. This circuit is crucial in single-ended amplifier designs, as it inverts one version of the audio signal to drive the push-pull output stage.

Push-Pull Output Stage (V8B, 6BQ5/EL84 & Transformer):

• Power Tubes (V8B, 6BQ5/EL84): A pair of these tubes operating in a push-pull configuration provides the final amplification stage before sending the signal to the speakers.
• Output Transformer (T): This transformer matches the impedance of the push-pull output stage to the speakers for efficient power transfer and optimal sound reproduction.

Power Supply Section (Not Shown):

The provided schematic doesn’t include the power supply section. However, a complete amplifier would include a power transformer, rectifier circuit, filter capacitors, and voltage regulator circuits to provide the necessary DC voltages for each stage of the amplifier.

Important Notes:

• This explanation is based on the visible components in the schematic and typical design principles for amplifiers of this era. The exact circuit configuration and component values might differ from the actual Festival D1000 amplifier.
• A complete understanding of the amplifier’s operation would require the entire circuit diagram, including the power supply section and specific component values.
• Building or modifying tube amplifiers requires expertise and knowledge to handle high voltages safely. If you’re working on a Harman Kardon Festival D1000 amplifier, exercise caution and follow proper safety procedures as you would with any high voltage equipment. Consider consulting a qualified professional if you’re not comfortable working with electronics and high voltage systems.
